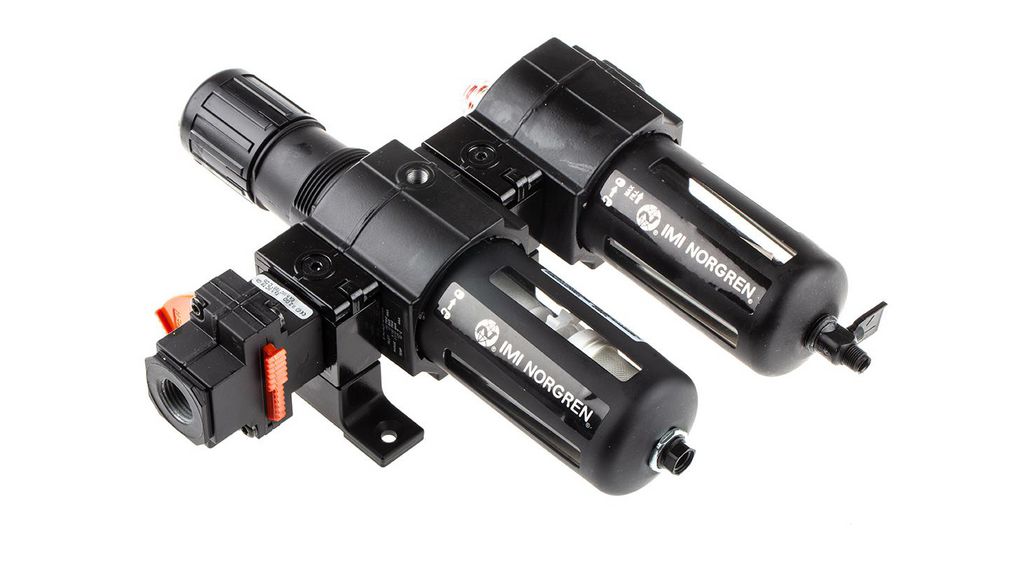

Norgren G 1/2 FRL, Automatic Drain, 40um Filtration Size - With Pressure GaugeBL74-401G
BL74-401G - Norgren G 1/2 FRL, Automatic Drain, 40um Filtration Size - With Pressure Gauge
304-87-625
BL74-401G
Manufacturer:Norgren
New to us
Image is for illustrative purposes only. Please refer to product description.
BL74-401G - Norgren G 1/2 FRL, Automatic Drain, 40um Filtration Size - With Pressure Gauge
304-87-625
BL74-401G
Manufacturer:Norgren
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Article Information
Bowl Material: Polycarbonate Connection Thread Standard: ISO G or NPT Drain Type: Automatic Filtration Size: 40 um Integrated Pressure Gauge: Yes Maximum Operating Pressure: 10 bar Maximum Operating Temperature: 50 °C Minimum Operating Temperature: -20 °C Overall Height: 230 mm Overall Length: 276 mm Overall Width: 74 mm Port Size: 1/2 in Pressure Gauge Port Size: 1/8 in Rc Pressure Gauge Port Thread Standard: Rc Pressure Setting Range: 0.3 to 10 bar Product Type: FRL Series: BL74 Standards/Approvals: No
Previous Article Number
30487625
Additional information
Country of origin Germany (DE)
Manufacturer Norgren
Gross weight (incl. package) 3884 Gram
Dimensions (incl. package) 415 x 363 x 227 MM
Customs number 8481109990
UNSPSC (v5.03) 27131603
