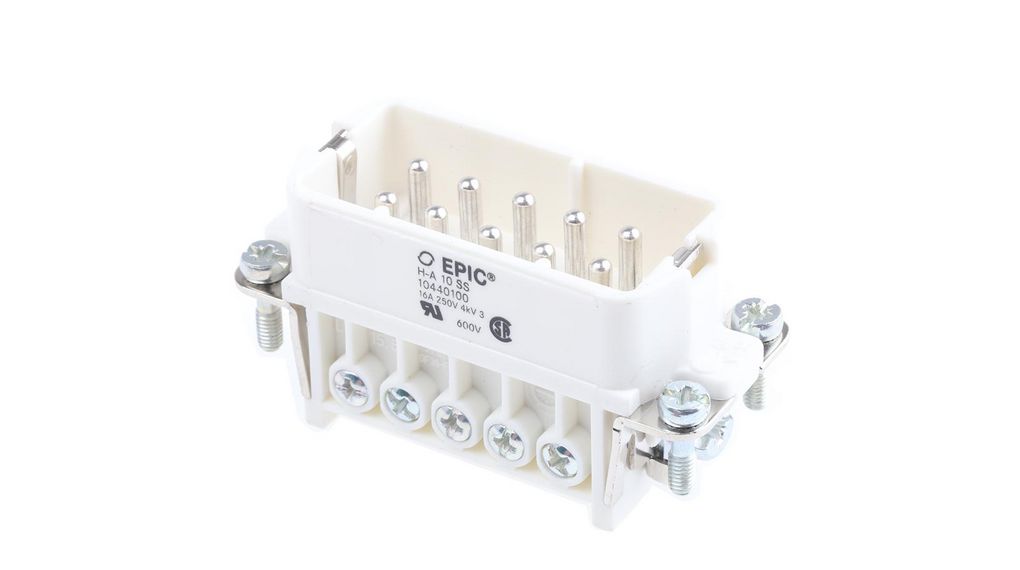

EPIC Heavy Duty Power Connector Insert, 14A, Male, H-A Series, 10 Contacts Poles10440100
10440100 - EPIC Heavy Duty Power Connector Insert, 14A, Male, H-A Series, 10 Contacts Poles
304-91-273
10440100
Manufacturer:EPIC
New to us
Image is for illustrative purposes only. Please refer to product description.
10440100 - EPIC Heavy Duty Power Connector Insert, 14A, Male, H-A Series, 10 Contacts Poles
304-91-273
10440100
Manufacturer:EPIC
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Connector Gender: Male Contact Material: Copper Alloy Contact Plating: Silver Current Rating: 14 A For Use With: Heavy Duty Power Connector Manufacturer Size Code: 10A Maximum Wire Size (mm²): 2.5 mm² Minimum Wire Size (mm²): 0.5 mm² Mount Type: Cable Number of Contacts: 10 Number of Rows: 2 Orientation: Straight Pole Format: 10 Product Type: Heavy Duty Power Connector Insert Series: H-A Standards/Approvals: No Sub Type: Connector Insert Voltage: 600 V
Previous Article Number
30491273
Additional information
Country of origin Germany (DE)
Manufacturer EPIC
Gross weight (incl. package) 48 Gram
Dimensions (incl. package) 238 x 151 x 26 MM
Customs number 8536901000
UNSPSC (v5.03) 39121402
