EPIC Heavy Duty Power Connector Insert, 14A, Female, H-A Series, 16 Contacts Poles10531000
10531000 - EPIC Heavy Duty Power Connector Insert, 14A, Female, H-A Series, 16 Contacts Poles
304-91-277
10531000
Manufacturer:EPIC
New to us

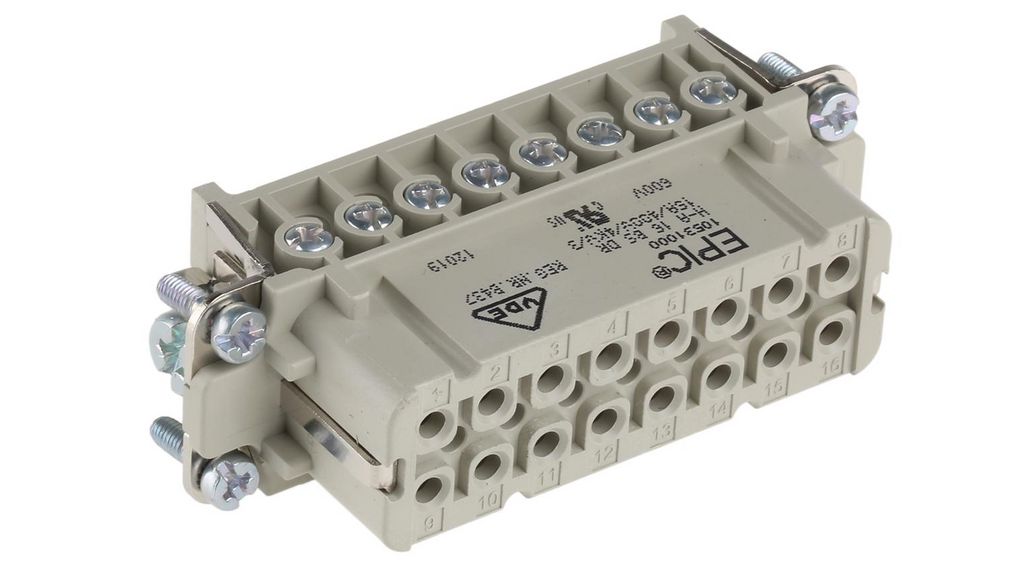

Image is for illustrative purposes only. Please refer to product description.
10531000 - EPIC Heavy Duty Power Connector Insert, 14A, Female, H-A Series, 16 Contacts Poles
304-91-277
10531000
Manufacturer:EPIC
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Connector Gender: Female Contact Material: Copper Alloy Contact Plating: Silver Current Rating: 14 A For Use With: Heavy Duty Power Connector Manufacturer Size Code: 16A Maximum Wire Size (mm²): 2.5 mm² Minimum Wire Size (mm²): 0.5 mm² Mount Type: Cable Number of Contacts: 16 Number of Rows: 2 Orientation: Straight Pole Format: 16 Product Type: Heavy Duty Power Connector Insert Series: H-A Standards/Approvals: No Sub Type: Connector Insert Voltage: 600 V
Previous Article Number
30491277
Additional information
Country of origin Germany (DE)
Manufacturer EPIC
Gross weight (incl. package) 68 Gram
Dimensions (incl. package) 96 x 95 x 38 MM
Customs number 8536901000
UNSPSC (v5.03) 39121402
