Current Transformer 60Hz 1.5 kA IP20 Bus Bar Mount LCTB 140/100H1718818
1718818 - Current Transformer 60Hz 1.5 kA IP20 Bus Bar Mount LCTB 140/100H
304-02-718
Manufacturer:RS PRO
New to us

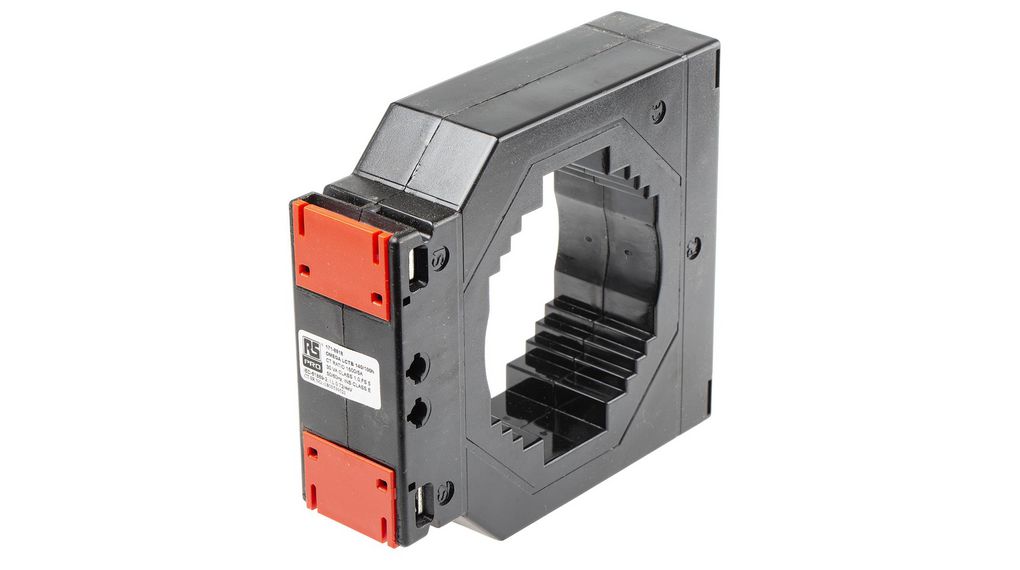

Image is for illustrative purposes only. Please refer to product description.
1718818 - Current Transformer 60Hz 1.5 kA IP20 Bus Bar Mount LCTB 140/100H
304-02-718
Manufacturer:RS PRO
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options. Comprehensive class accuracy Cost effective moulded case current transformer Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting Available in 0.2 & 0.2s accuracy class Wire sealable terminal covers
- Current ratio 1500:5A
- Wall mount and cable mount included
- Class 1 accuracy
Previous Article Number
30402718
Additional information
Country of origin India (IN)
Manufacturer RS PRO
Gross weight (incl. package) 1083 Gram
Dimensions (incl. package) 165 x 148 x 52 MM
Customs number 8504312990
UNSPSC (v5.03) 41113637
