3P 2 Position On-Off Cam Switch, 690 V, 20A2083929
2083929 - 3P 2 Position On-Off Cam Switch, 690 V, 20A
304-84-007
Manufacturer:RS PRO
New to us

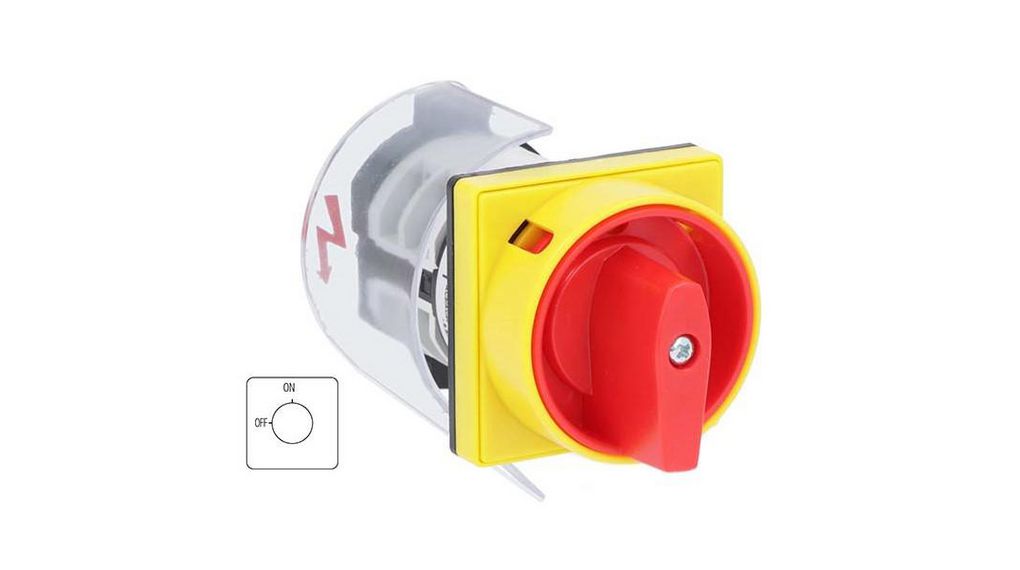

Image is for illustrative purposes only. Please refer to product description.
2083929 - 3P 2 Position On-Off Cam Switch, 690 V, 20A
304-84-007
Manufacturer:RS PRO
Product specifications
Select attributes and click search to find other products that match your specification
Downloads
Datasheets
Product Information
Legislation and compliance
RoHS
Conforms
REACH Regulation No SVHC
Article Information
Actuator Type: Knob Angle of Throw: 90 ° Contact Current: 20 A Contact Voltage: 690 V Electrical Phase: 3 Hazardous Area Certification: No IP Rating: IP20 Length: 48 mm Maximum Operating Temperature: 55 °C Mechanical Life: 5000000 Operations Minimum Operating Temperature: -25 °C Mount Type: Panel Number of Poles: 3 Number of Positions: 2 Product Type: Cam Switch Standards/Approvals: RoHS Terminal Type: Screw Width: 48 mm
Previous Article Number
30484007
Additional information
Country of origin Croatia (HR)
Manufacturer RS PRO
Gross weight (incl. package) 118 Gram
Dimensions (incl. package) 102 x 70 x 51 MM
Customs number 8536508000
UNSPSC (v5.03) 39121510
EAN 5059044228906
